Production Model

Depending on your Equipment In VOSS RT Equipment is the collective name for all marine and land machinery provided with positioning (and attitude devices). type, this option is available. The Production Model is typically used by Suction Dredgers. The mixture densities are stored in this model. It gives the crew an insight in production in different areas. Passes over the same place will be combined with previous density data. The mixture densities are typically obtained from the VODAS Van Oord Dredging Automation System - this system is also used to control the output for rockdump vessels (VODAS output control). input string.

The Production Model is one of the Main Shapes.

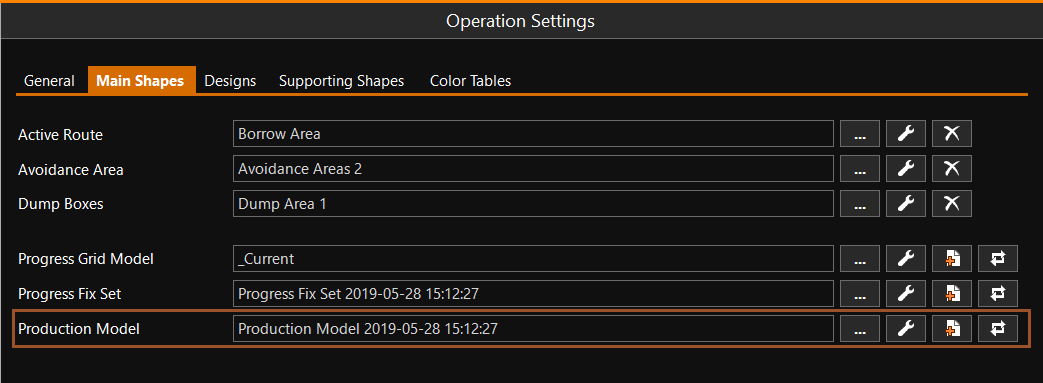

Under Main Shapes A geometric entity or a collection of such entities. Each entity is described by basic geometry such as a point, a line or an arc. Examples of shapes are: Route, Centerline, Waypoints, Fix Set, Dump Boxes, Progress Grid Model, Designs, etc. the Production Model is specified:



 MENU > Operation Settings > Main Shapes > Progress Grid Model The Grid Model that will show the current levels in your working area. It is updated by survey updates and by your head(s) (Dredgehead, bucket, WID bar, plough, etc.) or:





 Keyboard: F1 > Main Shapes > Progress Grid Model A type of DTM that is made manageable through sampling measured points into a regularly spaced raster, allowing fast and conditional access. Considered to be a secondary data set; since no original points are kept..







Click [...] to select your Production Model



Click [spanner] to adjust the way the Production Model is shown in Section views



Click [New grid model]to create a new empty Production Model



Click [Update history] to inspect the history of survey updates that have been applied to the model



The information in the Production Model can be shown in the Top View with the Active Color Table for Production.
