User Polyline

The user can define a Polyline in the Drawing Mode. A Polyline is a line of one or more segments.



On this page:

• Start Drawing Mode

• Insert User Polyline

• Edit User Polyline

• Delete User Polyline



Start Drawing Mode



 Right mouse click in Top View > Drawing Mode





Insert User Polyline

Click on the Polyline Icon:

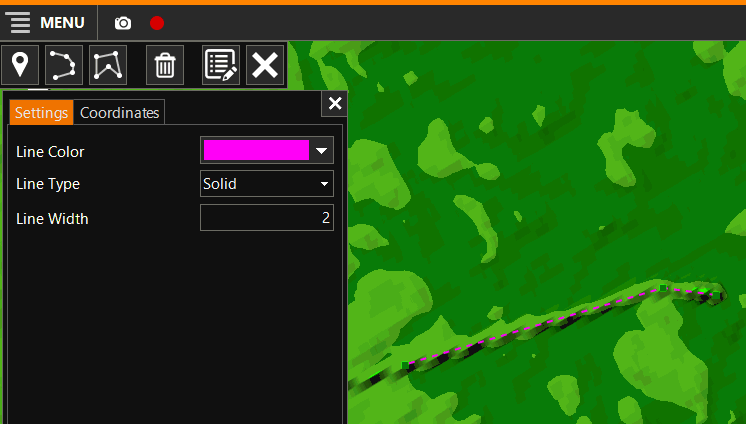

You can either draw the Polyline graphically by clicking on the Top View, or you can type in the co-ordinates and use Add to add more points.



Edit User Polyline

To Edit a User Polyline, first Start Drawing Mode.

Select a Polyline:

• graphically: look up the Polyline in the Top View and double click on it

• from a list, click on and select the Polyline to edit.

To adjust the location of points of the Polyline, click on them once and adjust the co-ordinates in the list, or double click a point and move it graphically.



Delete User Polyline

See: Delete User Waypoint, Polyline or Polygon
