Progress Structure

A Progress Structure is a Structure that is created by the operator on the Equipment In VOSS RT Equipment is the collective name for all marine and land machinery provided with positioning (and attitude devices)..

It can store, for example, all concrete elements that have been placed.

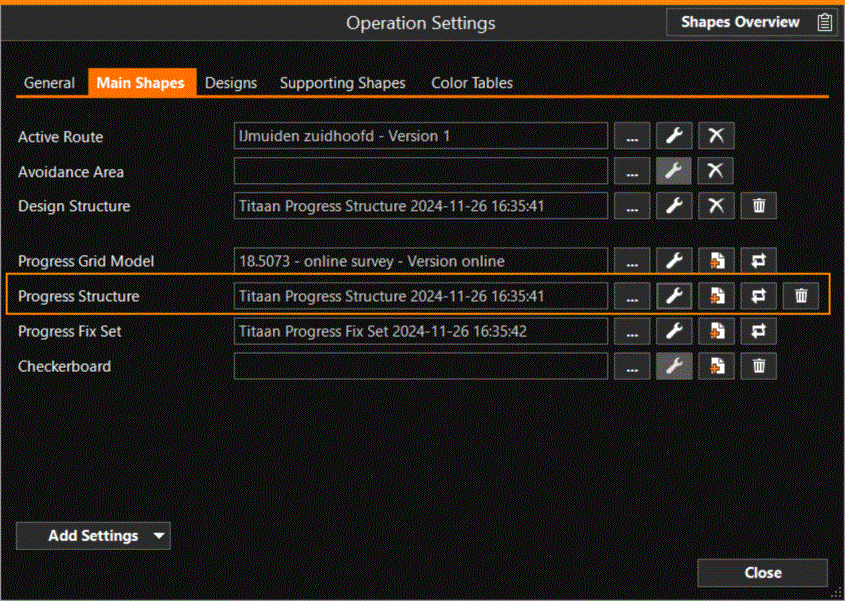

 MENU > Operation Settings > Main Shapes A geometric entity or a collection of such entities. Each entity is described by basic geometry such as a point, a line or an arc. Examples of shapes are: Route, Centerline, Waypoints, Fix Set, Dump Boxes, Progress Grid Model, Designs, etc. > Progress Structure

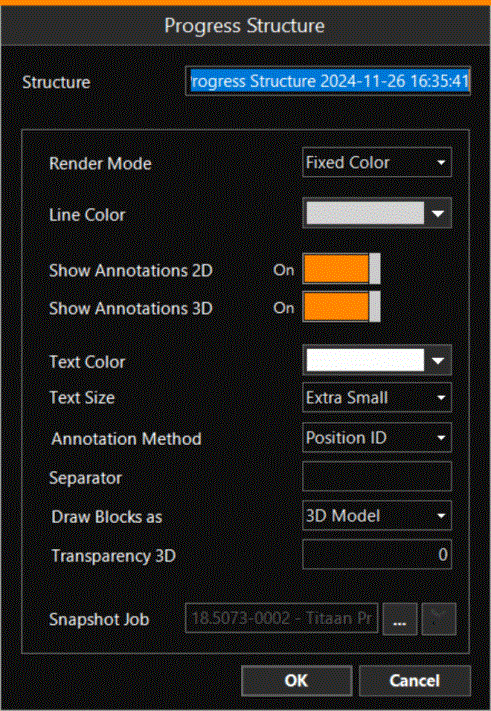

Settings

Snapshot Job - When a camera has been installed, select a Job in which to store the images as recorded during/after placing a block.



The Progress Structure is a Main Shape and can be managed via: Main Shapes
