Horizontal Drain

A Horizontal Drain is a tube that is installed horizontally with the purpose to drain the terrain.

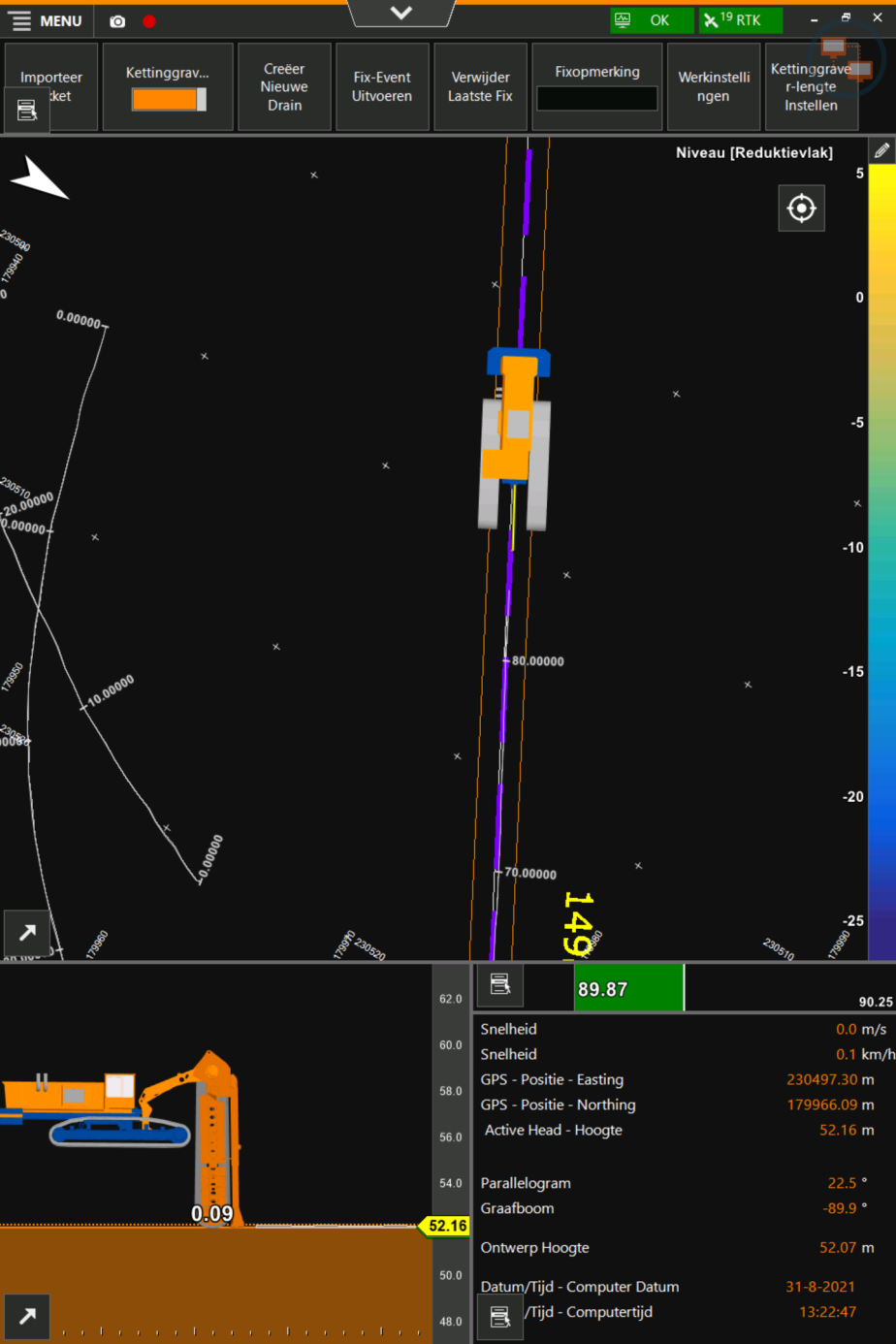

During installation, the location of the installed drain is stored in a file for later export, based on the track of the installation 'sword'.

To be able to store this data at Main Shapes, a Horizontal Drain shape A geometric entity or a collection of such entities. Each entity is described by basic geometry such as a point, a line or an arc. Examples of shapes are: Route, Centerline, Waypoints, Fix Set, Dump Boxes, Progress Grid Model, Designs, etc. file must be selected or created:

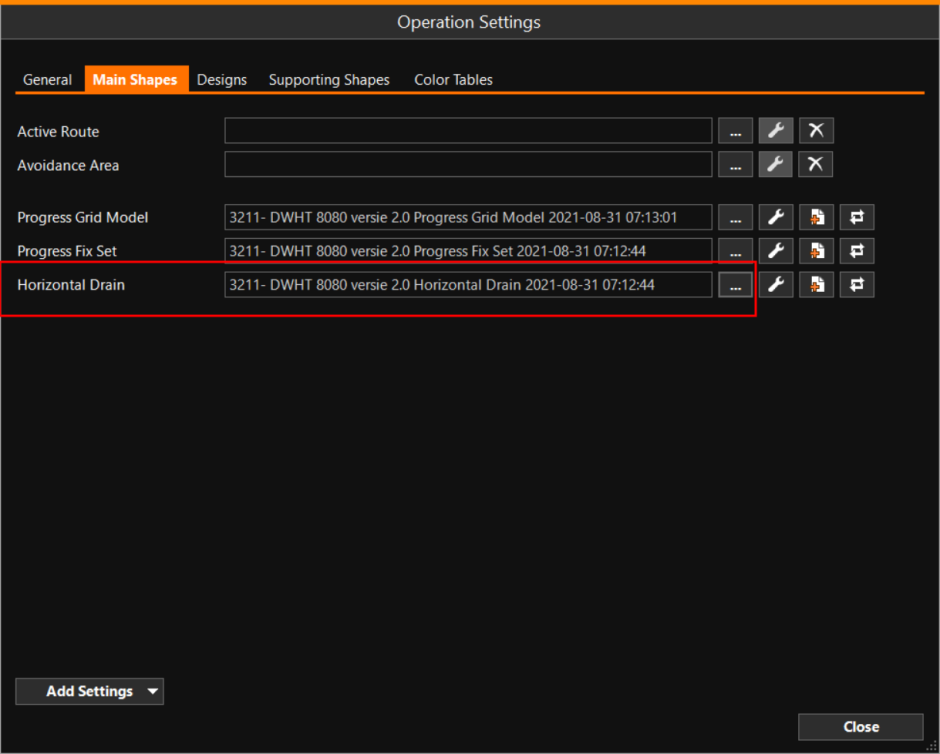

 MENU > Operation Settings > Main Shapes > Horizontal Drain



The Horizontal Drain is a Shape of the type 'pipeline'.
