Dump Boxes

Dump Boxes are areas designated to deposit material. Dump box shapes A geometric entity or a collection of such entities. Each entity is described by basic geometry such as a point, a line or an arc. Examples of shapes are: Route, Centerline, Waypoints, Fix Set, Dump Boxes, Progress Grid Model, Designs, etc. contain many dump boxes that all have a unique name.

To select or change the Active Dump Box shape file:

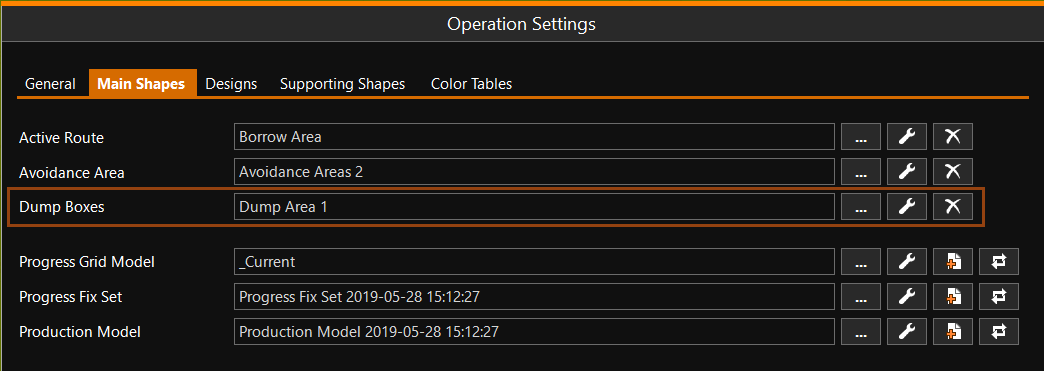

 MENU > Operation Settings > Main Shapes > Dump Boxes or:





 Keyboard: F1 > Main Shapes > Dump Boxes





Click [...] to select your Dump Boxes.

Click [spanner] to adapt the way the Dump Boxes are shown.

Click [X] to remove the selected Dump Boxes.



To select an individual Dump Box to Navigate to, see: Dump Box.
